Application Performance

How to profile your application and use advanced MVsharp features to improve the performance of your application.

Contents

1 Introduction

2 MVsharp profiling

3 Database Caching

3.1 Determining which files to cache

3.2 Pre-caching of files

3.3 Using READCACHE and READCACHEV

4 Batching Updates

5 A and S dictionaries vs D types and I types

6 Indexing to improve SELECT performance

7 Using Joins to improve translate performance

8 Using SQL Server profiler

Introduction

There is a significant difference between MVsharp using SQL server as it it's database and traditional MultiValue platforms. Where traditional MultiValue platforms run both the database and application on the same piece of hardware, MVsharp allows a multi-tiered architecture where database and application can reside of different servers. This feature raises different approaches on how to configure your application to obtain best performance. The following needs to be taken into consideration.

  1. Each access to the database is a request that is sent from the application server to the SQL host, network latency needs to be taken into consideration.

  2. Writing separate records to the database requires a request for each update. Doing large batch updates need to be configured for performance.

  3. Each MVsharp row is stored as a dynamic array in SQL server (key value pair). When selecting large tables the MVsharp normalization engine in SQL needs to normalize the data before selecting. Using MVsharp Index's can significantly reduce the amount of work that needs to be done in SQL.

  4. Pick style dictionaries (A and S) do not specify if a field is singled valued or multi valued so MVsharp assumes all Pick style dictionaries are multi valued. This has performance impact.

  5. Translates to other files requires additional SQL reads for each record in the primary file. Performance can be vastly improved by using MVsharp joins.

  6. Performance tools in MVsharp and SQL server. There is a host of valuable tools that be can used to diagnose what the interactions between MVsharp and SQL server.

MVsharp profiling

Most modern development environments have many tools that analyze your running application and can highlight areas that can be tuned for better performance. MVsharp has a profiling engine built-in to core the product. The engine can be enable to gather profiling information to enable you to pinpoint areas where performance can be improved.

The profiling engine gathers statistics in the following areas:

  1. Database operations. Database IO probably causes most applications not to run optimally. These statistics enable you to see what files have been accessed and the types of io operations on them.

  2. Subroutine calls. By gathering statistics on all subroutine calls including the no of times it is called, the duration for the subroutine to complete and the minimum and maximum times. You can identify slow running programs.

  3. Executes. Complex selection criteria can often slow a process down. The execute statistics show the duration, program name and line number to enable you to quickly locate long running selects and to correct them with index's or changing the order of the selection criteria

  4. Itypes. Complex Itypes can often cause reports to run slowly. The Itype statistics enable you to quickly locate those.

Profiling can be turned on at TCL by typing:

>PROFILE ON

All activity will then be captured from that point. To turn off profiling, type:

>PROFILE OFF

Profiling can be used to track an application and take corrective action.

Database Caching

Reducing the amount of IO between the application server and the SQL server can improve the performance of your application. Caching should only be used when running batch processes or reports and not for transactional processes. There are 2 scenarios where we can apply caching.

  1. Records from a file are read multiple times from within the same process. When we turn caching on for that file, the record is read once from SQL server and the then from the cache for subsequent reads, reducing the calls to SQL server. In this scenario we just cache the required files and BASIC programs stay as they are.

  2. Records that don't exist in the file are read because we are just checking if they exist. When the application does this the records wont exist the cache and therefor a read from SQL is required. In this scenario, we cache the file, read each row in the database and modify the programs to use a READCACHE and READCACHEV statements in place of READ and READV.

Determining which files to cache

We use MVsharp profiling to determine which files to cache. Turn profiling on and run the process. When the process has completed we, we use the following command to display file activity.

>PROFILE DISPLAY FILEIO

File Access Statistics Page 1 17:03:41 02-25-22 02-25-22

File Name Cache   Writes  Reads   Deletes   Selects   Unique
---------------   ------  -----   -------   -------   ------  ----
_VOC              0       7       0         0         5       0
_CUST             0       2505    0         0         501     0

In the above example, we can see that the CUST file was read 2505 times with only 501 unique key. This indicates that the file is a good candidate for caching to reduce IO.

Pre-caching of files

Records from an active list are streamed and only send 1 request to SQL, all other reads require a request to SQL server for each record. We reduce the IO to SQL server by pre caching a file and then reading the entire file into cache. This uses memory but significantly reduces IO to SQL server.

Example:

PROGRAM TEST
OPEN "CUST" TO F.CUST ELSE STOP 201,"Unable to open CUST"
CACHE("_CUST")
SELECT F.CUST TO 9
LOOP
   READNEXT ID FROM 9 ELSE EXIT
   READ REC FROM F.CUST , ID ELSE REC = ""
REPEAT
*

Any subsequent reads will only be from cache and performance greatly enhanced.

Using READCACHE and READCACHEV

To determine whether we need to use READCACHE or READCACHEV, we use the SQL Server profiler. The profiler records every interaction you application has with SQL server. The process is as follows:

  1. Open SQL Server management tools
  2. From the tools menu, select the profiler.
  3. Add the above pre caching technique to your application.
  4. Run the application with the profiler on.

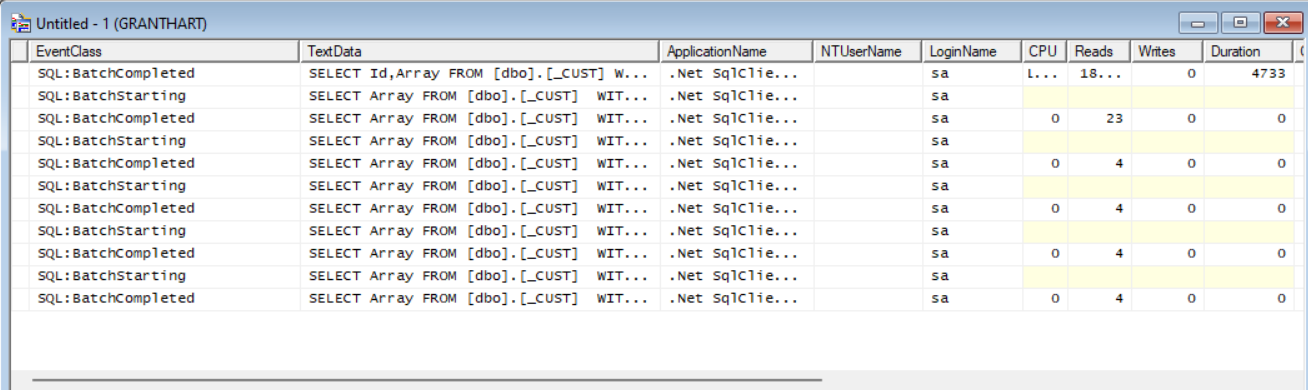

app_performance_pic_1

From the above you can see that even though we have cached the file and read all records, the application is still sending requests to SQL indicating that it is reading non existant records.

Changing the READ statements to READCACHE will only read from the cache and not from SQL server.

Batching Updates

Programs that update large amounts of records in a batch, send an UPDATE statement to SQL for each update. This is not an efficient as there is always latency on each call. In order to improve efficiency, 2 new statements have been added to MVsharp to allow you to batchup a certain amount of updates and then send them as batches improving performance.

Example:

PROGRAM Update
OPEN "CUST" TO F.CUST ELSE STOP 201,"Unable to open CUST"
BATCHSTART(F.CUST,1000)
SELECT F.CUST TO 9
LOOP
   READNEXT ID FROM 9 ELSE EXIT
   READ REC FROM F.CUST , ID THEN
      REC<5> = 0
      WRITE REC ON F.CUST , ID
   END
REPEAT
BATCHEND(F.CUST)
*

In the above example, the BATCHSTART(F.CUST,1000) indicates that a single batch of 1000 records will be sent to SQL server for every 1000 updates to the CUST file.

The BATCHEND(F.CUST) will flush any remaining updates since the last batch of a 1000 records.

(ADD details IC.INV.QPS.BUILD)

A and S dictionaries vs D types and I types

A and S dictionaries do not have the capability to determine whether a field in single or multi valued and are treated as multi valued at all times.

In MVsharp the SQL engine needs to try and expand all multi values which is time consuming. In order to improve database access, A and S types should be converted to D and I types.

Dictionary Format

Field Example Description
1 D or I Type of dictionary.
2 1 Field number or Itype expression.
3 MD2 Conversion Code.
4 Amount Description and Heading.
5 20L Width and Justification.
6 S S for single value M for multi value.
7
8 DECIMAL(18,2) Sql Datatype. Should be specified when using field as an index or in a SQL view.

Note:

Itypes that call the SUBR statement cannot be executes in SQL server or persisted for index's. Where possible rather impliment the code in an Itype and don't call the SUBR statement.

Indexing to improve SELECT performance

Each SELECT is translated into a SQL statement and the MVsharp normalization engine embedded in SQL server normalises the MV data to select the records on the fly.

SELECT performance can improved by creating index's on specific fields in the file that are used as selection criteria.

When analysing your application to determine which fields to create an index on, MVsharp profiling can collect all statements that are executed and display the time it took for the selection to take place.

Turn PROFILE ON and execute your application

>PROFILE DISPLAY EXECUTES

Execute Statistics Page 1 19:42:56 02-25-22 02-25-22
Subroutine  Name   Lineno  Time  Command
----------  ----   ------  ----  -------
X           28769  SELECT  CUST  WITH F1 # ''
>

From the above we can see the subroutine 'X' executed the SELECT statement and it took 28 seconds. Based on this information where queries take long, create index on the appropriate fields.

Note:

Itypes that do a translate to another table cannot be index'd. See the section on JOINS to address performance on translates

MVsharp also has a global logging of executes which can be turned on in the MVSHARP.CONFIG file with the LOGEXECUTE flag. This logs executes from all processes on the system.

Example:

2/25/2022 11:43:00 AM 0     BOWO    SELECT BRANCH-REGIONS BY REGION WITH MGR \"BOWO\" OR WITH ASSTMGR \"BOWO\" OR WITH ROIS \"BOWO\"
2/25/2022 11:46:23 AM 0     BOWO    SELECT BRANCH BY BR# WITH STATUS \"ACTIVE\" AND WITH MGR \"BOWO\" OR WITH ASSTMGR \"BOWO\" OR WITH ROIS \"BOWO\" OR WITH REGMGR \"BOWO\" OR WITH WHSEMGR \"BOWO\"
2/25/2022 11:46:23 AM 0     BOWO    SELECT BRANCH-REGIONS BY REGION WITH MGR \"BOWO\" OR WITH ASSTMGR \"BOWO\" OR WITH ROIS \"BOWO\"
2/25/2022 11:46:26 AM 0     BOWO    LISTU
2/25/2022 11:46:26 AM 0     BOWO    LOGOFF 3356
2/25/2022 11:46:26 AM 0     BOWO    MVS.ASSIGN.PORT
2/25/2022 11:46:27 AM 0     BOWO    SELECT BRANCH BY BR# WITH STATUS \"ACTIVE\" AND WITH MGR \"BOWO\" OR WITH ASSTMGR \"BOWO\" OR WITH ROIS \"BOWO\" OR WITH REGMGR \"BOWO\" OR WITH WHSEMGR \"BOWO\"
2/25/2022 11:46:27 AM 0     BOWO    SELECT BRANCH-REGIONS BY REGION WITH MGR \"BOWO\" OR WITH ASSTMGR \"BOWO\" OR WITH ROIS \"BOWO\"

It shows the date, time user, port number and the select statement.

Using Joins to improve translate performance

As mentioned translated data cannot be index's. SQL has the ability use a JOIN on 2 tables to compare data between 2 tables.

In order to create a join there are 2 dictionaries that are required.

  1. A dictionary in the primary file that resolves the key to the second file,
  2. A dictionary in the secondary file that returns the field.

All dictionaries in the join must be converted to D types.

Example:

TRANS("ACCOUNTS",FIELD(@ID,"*",1),14,"X")

In the above example, the key to the secondary file is FIELD(@ID,"*",1). We need to create an index on the primary file for the remote key. We create a new dictionary as follows:

ACCKEY

0001: I
0002: FIELD(@ID,"*",1)
0003:
0004: Account Key
0005: 20L
0006: S
0007:
0008: VARCHAR(20)

>CREATE.INDEX AP-EXP-GL ACCKEY.

Attribute 14 (field to be returned) already has a dictionary called TRACE, so we index it.

>CREATE.INDEX ACCOUNT TRACE

The format for creating a join is:

CREATE.JOIN {LocalFile} {DictionaryId} {KeyToRemote} ON {RemoteFile} {RemoteColumn}

>CREATE.JOIN AP-EXP-GL TRACE ACCKEY ON ACCOUNTS TRACE

Using SQL Server profiler

The SQL server profiler allows you to evaluate all interactions with SQL server from MVsharp applications. It is very useful, as mentioned earlier, to find specific queries that could be executed by a program.

The type of information you derive from the profiler are:

  1. What tables are being accessed at a point in time.
  2. The SQL query that is being executed (translated from MVsharp query)
  3. Locate the same record that is being read multiple times (redundant reads)
  4. The time and processing required to execute a query

To start the profiler: 1. Start SSMS and login 2. Select profiler from the 'tools' menu 3. Run the profiler.

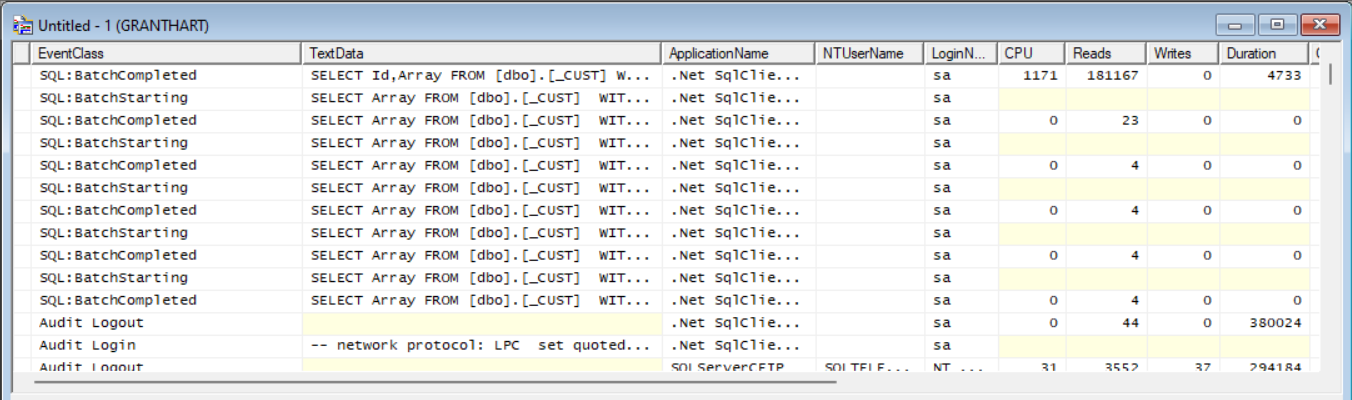

Screen shot of the information shown

app_performance_pic_2

Columns of interest:

TextData

TextData The SQL query that is being execute
CPU The amount of CPU used by the query. High values indicate impact on SQL.
Reads Amount of page reads for the query.
Writes Amount of page writes for the query.
Duration Indicates in milliseconds how long the query took.
